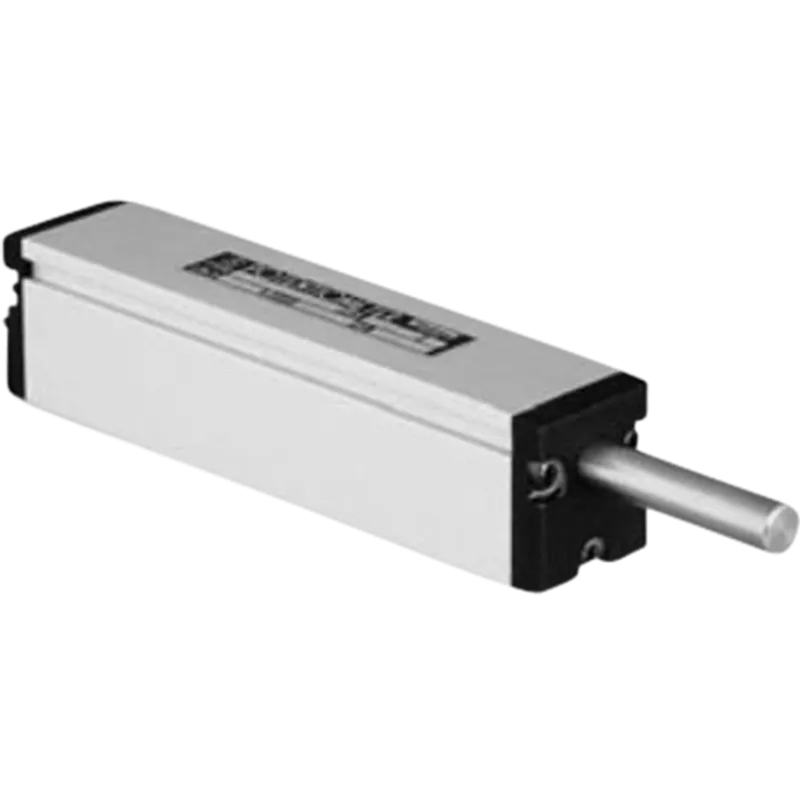

18FLPA Series Linear Potentiometer

Conductive Plastic Model with plain shaft and screw mounting to the body

TECHNISCHE SPEZIFIKATIONEN

Eigenschaften

  • Industrial conductive plastic model
  • Measurement range: between 15 mm and 100 mm
  • Resistance value: 500 Ω to 20 kΩ
  • Linearity tolerance: ±0.7% or ±0.5%, ±0.4%, ±0.3%, ±0.25% and ±0.2%
  • Body dimensions (mm): 20.5x18x(depends on the type of sensor)

About the 18FLPA Series Linear Potentiometer

The 18FLPA has a robust housing case and is with faston-terminals.

The 18FLPA15, 18FLPA30, 18FLPA50 and 18FLPA100 are our available types within the 18FLPA Series.
For specfied information about a certain type, please contact us.

Special Specifications available

Stroke 150mm (S18FLPA150), stroke 200mm (S18FLPA200), sealed type (IP54, the length of "A" is extended by abt. 6 mm), with spring return device (up to 100mm stroke. Friction is 3N [300gf]. Spring return device is mounted on the outer shaft and the shaft is extended by some extent depending on the models. For details please ask us), special machining on the shaft.

Benötigen Sie diesen Sensor für Ihr nächstes Projekt?

Fordern Sie jetzt ein Angebot an oder lassen Sie sich kostenfrei von unseren Experten beraten!

Angebot anfordern

  • Schnelles Feedback
  • Maßgeschneiderte Angebote
  • Kostenlose technische Beratung

18FLPA Series Linear Potentiometer

 Kontakt

Maßgeschneidert nach Ihren Anforderungen

Nicht das richtige Produkt? Wir bieten Ihnen sowohl Standard Sensoren als auch maßgeschneiderte Produkte und komplette Messlösungen. Bitte kontaktieren Sie uns für eine Beratung oder ein unverbindliches Angebot!

Kontakt

Technische Spezifikationen

Spezifikationen Wert
Precision class Precision class: ±0.5%, ±0.25%, ±0.2%
Contact resistance variation Within 2% C.R.V.
Dielectric strength 1 minute 1.000V.A.C.
Friction Within 0.3N (30gf), Within 1N(100gf)
Independent linearity tolerance Standard class: ±0.7%, ±0.4%, ±0.3%
Insulation resistance Over 1.000MΩ at 500VDC
Mass Approx. 60g, approx. 70g, approx. 100g, approx. 140g
Output smoothness Within 0.1% against input voltage
Power rating 0.3W, 0.6W, 0.75W, 1.25W
Resistance temperature coefficient ±400p.p.m./°C
Resolution Essentially infinite
Standard resistance values 500Ω, 1kΩ, 2kΩ, 5kΩ, 10kΩ
Stopper strength Approx. 90N (9kgf)
Stroke 15mm, 30mm, 50mm, 100mm
Total resistance tolerance ±10%
