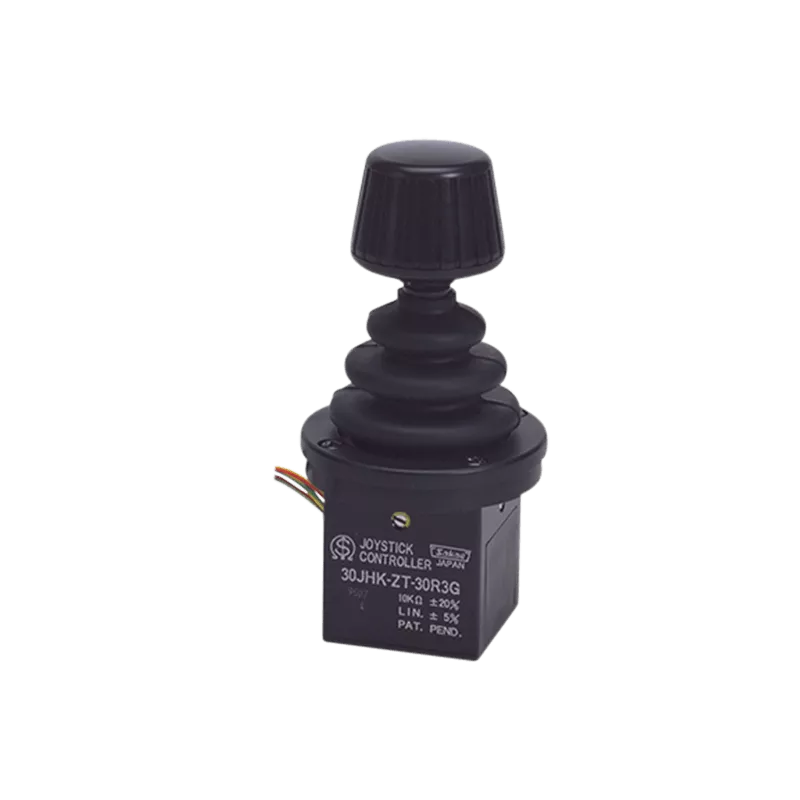

30JH Three-Axis Finger Joystick
Low-cost 3-Axis Joystick controller. Spring return device and dust-proof rubber cover are fitted as standard version.
Eigenschaften
- Low-cost finger joystick
- 3-dimensional coordinate type (3-axis)
- With conductive plastic element
- Protection IP65
About the 30JH 3-Axis Finger Joystick
Low-cost version of 3-dimensional coordinate type joystick controllers and no other dimensional coordinate is available. Spring return device and dust-proof rubber cover are fitted as standard version.
Applications for 30JH
- Medical instruments
- Studio-related apparatuses
- Industrial vehicles
Benötigen Sie diesen Sensor für Ihr nächstes Projekt?
Fordern Sie jetzt ein Angebot an oder lassen Sie sich kostenfrei von unseren Experten beraten!
Produkt Downloads
Maßgeschneidert nach Ihren Anforderungen
Nicht das richtige Produkt? Wir bieten Ihnen sowohl Standard Sensoren als auch maßgeschneiderte Produkte und komplette Messlösungen. Bitte kontaktieren Sie uns für eine Beratung oder ein unverbindliches Angebot!
KontaktTechnische Spezifikationen
Spezifikationen | Wert |
---|---|
Z direction: Approx. 30~70mN•m (300~700gf.cm) | |
Z direction: Approx.±30º~35º from center position | |
Contact resistant variation | Below 6% C.R.V. |
Controlling range of operating lever | X and Y directions: Approx.±10º~15º from center position. (Omni-directionally) |
Dialectric strength | 1 minute at 500 V.A.C. |
Insulation resistance | Over 1.000MΩ at 500V.D.C. |
Life expectancy | Approx. 2.000.000 operations |
Mass | Approx. 130g |
Operating force | X and Y directions: Approx.1~2N (100~200gf) |
Operating temperature range | -20ºC~+60ºC |
Resolution | Essentially infinite |
Shock | 294m/s² |
Soepelheid van de output | Below 0.2% against input voltage |
Vibration | 10~55Hz 98m/s² |
