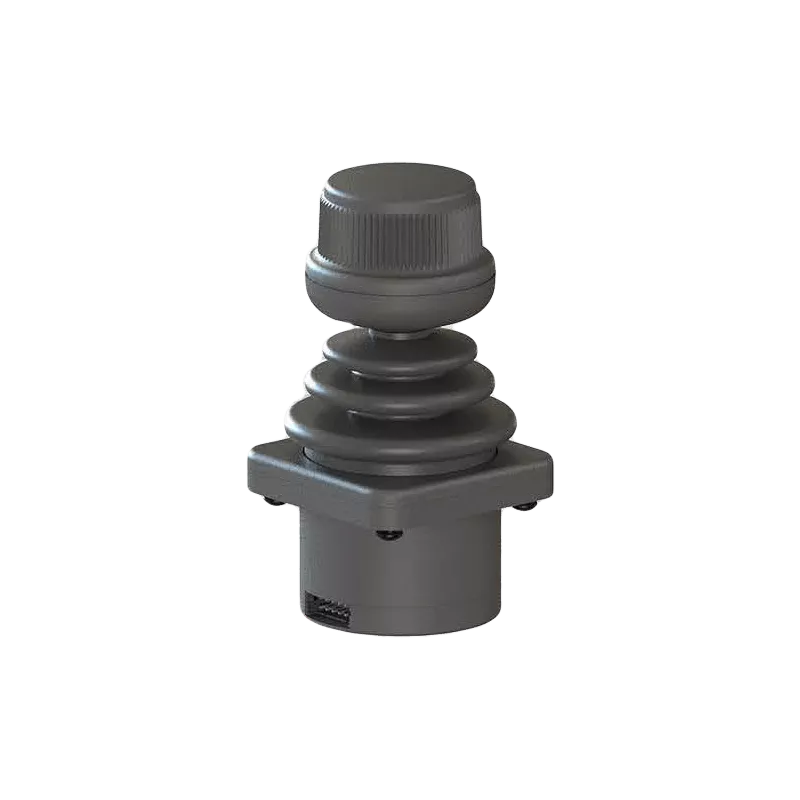

HE1 Multi-Axis Finger Joystick

Compact precision Hall effect Finger Joystick (1-axis, 2-axis or 3-axis) with plug & play USB output option and a large array of customization possibilities and easy mounting options.


Eigenschaften

  • Over 20 handle options and 6 mounting options
  • Available in 1, 2 or 3 axis configurations
  • With contactless hall effect sensor technology
  • Compact design (under 25mm below panel depth)
  • Protection up to IP67 grade
  • Pre-programmed proportional analog output or USB
  • Cable included with mating connector & pigtail wires

About our HE1 Multi-Axis Finger Joystick

This all-purpose finger-operated joystick comes with many different mounting and handle options to choose from. The operating principle is based on contactless Hall Effect technology which has a long life expectancy due to the absence of mechanical contacts.

The HE1 joystick has an excellent return to centre accuracy and many pre-programmed electrical output options, including analog voltage, USB and Cursor Control. It is perfect for applications where the below panel space is limited due to its shallow profile and has an optional metal threading for easy mounting. Depending on the handle, the environmental protection is tested up to IP67.

The USB output option is installed by plug & play and can operate as a standard USB 1.1 HID-compliant device without the need to install additional software. Cursor Control is also available, which is achieved by the joystick's microprocessor.

The rugged version of this HE1 Finger-operated Joystick is the HE2 Multi-Axis Joystick. This joysticks is specifically developed for harsh environments and all configurations are tested for minimum IP67 grade.

Applications

  • Chest controllers
  • CCTV systems
  • Medical instruments
  • Material handling equipment
  • Robot operations
  • Crane operations

Benötigen Sie diesen Sensor für Ihr nächstes Projekt?

Fordern Sie jetzt ein Angebot an oder lassen Sie sich kostenfrei von unseren Experten beraten!

Kontakt

Produkt Downloads

Maßgeschneidert nach Ihren Anforderungen

Nicht das richtige Produkt? Wir bieten Ihnen sowohl Standard Sensoren als auch maßgeschneiderte Produkte und komplette Messlösungen. Bitte kontaktieren Sie uns für eine Beratung oder ein unverbindliches Angebot!

Kontakt

Technische Spezifikationen

Spezifikationen Wert
Angle of movement ±20° (X,Y-axis) / ±45° (Z-axis)
Centering Spring return
Expected cycle life 5 million
Ip sealing above panel Up to IP67, depending on handle
Material Glass/Mineral filled nylon
Operating temperature -20°C to 60°C
Output voltage 0V-5V / 0.5V-4.5V / 0.25V-4.75V / 1V-4V
Resolution Analog: 12 bit, USB: 10 bit
Sensor type Hall effect
Storage temperature -40°C to 70°C
Supply voltage 5VDC ±0.01VDC
