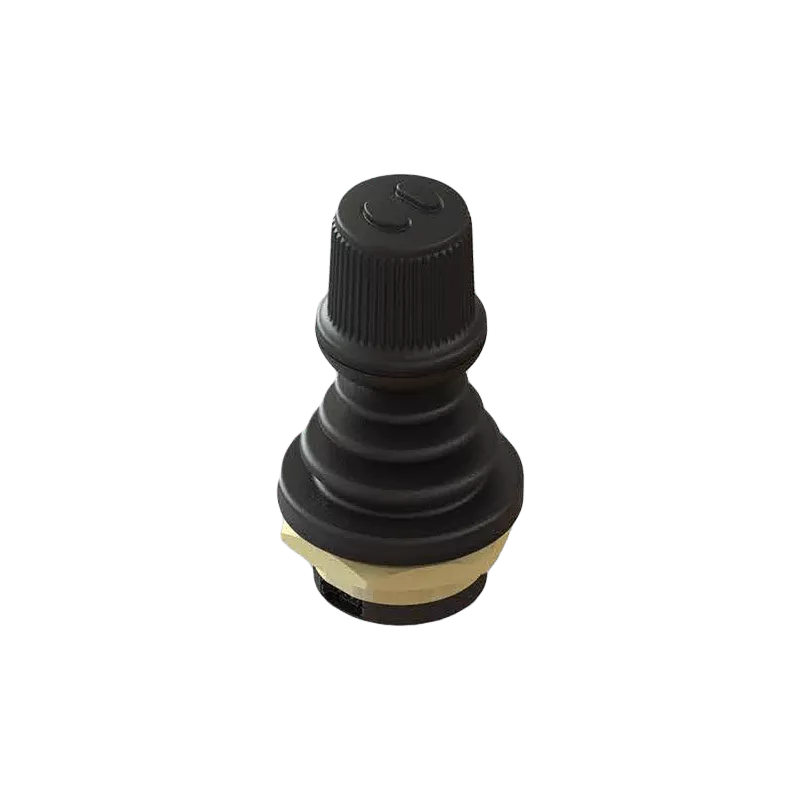

HE2 Multi-Axis Finger Joystick

Available in 1-axis, 2-axis or 3-axis configurations. Fully sealed and rugged Joystick, for harsh industrial environments with minimum IP67 grade.


Eigenschaften

  • Robust stainless steel shaft & brass X/Y mechanism
  • With contactless hall effect sensor technology
  • Pre-programmed proportional analog output/ USB
  • Available in 1, 2 or 3 axis configurations
  • Cable included with mating connector & pigtail wires
  • Suitable for harsh environments (all configurations are IP67 sealed)

About our HE2 finger joystick

This is the rugged version of the HE1 Multi-Axis Finger-operated Joystick, available in 1-axis, 2-axis or 3-axis models. It is developed specifically for harsh environments and all configurations are tested for minimum IP67 grade. The HE2 mechanism is constructed from a robust stainless steel shaft on a brass gimbal, this enables the joystick to withstand very large input forces. Further protection from the elements is achieved by sealing all above panel parts, allowing the HE2 to resist all ingress of dust and submersion in 1m of water.

This model is ideal for marine and offshore applications, chest packs, and other industrial applications that require a reliable high precision joystick that can resist the elements. The electrical output options are similar to the HE1 Joystick, including analog voltage, USB HID 1.1 and cursor control. All necessary mounting hardware and electrical cables are always included in the package.

Additional features

  • Delivery within 2 weeks
  • Elastomer overlay handle provides a soft touch feel with optionally integrated switches

Applications

  • Marine and offshore control
  • Mobile hydraulics
  • Chest controllers
  • Industrial vehicles
  • Robot operations
  • Crane operations

Benötigen Sie diesen Sensor für Ihr nächstes Projekt?

Fordern Sie jetzt ein Angebot an oder lassen Sie sich kostenfrei von unseren Experten beraten!

Kontakt

Produkt Downloads

Maßgeschneidert nach Ihren Anforderungen

Nicht das richtige Produkt? Wir bieten Ihnen sowohl Standard Sensoren als auch maßgeschneiderte Produkte und komplette Messlösungen. Bitte kontaktieren Sie uns für eine Beratung oder ein unverbindliches Angebot!

Kontakt

Technische Spezifikationen

Spezifikationen Wert
Angle of movement ±20° (X,Y-axis) / ±45° (Z-axis)
Centering Spring return
Expected cycle life 5 million
Ip sealing above panel IP67 Standard
Material Glass/Mineral filled nylon, Stainless steel shaft, Brass gimbal
Operating temperature -40°C to 85°C
Output voltage 0V-5V / 0.5V-4.5V / 0.25V-4.75V / 1V-4V
Resolution Analog: 12 bit, USB: 10 bit
Sensor type Hall effect
Storage temperature -40°C to 85°C
Supply voltage 5VDC ±0.01VDC
