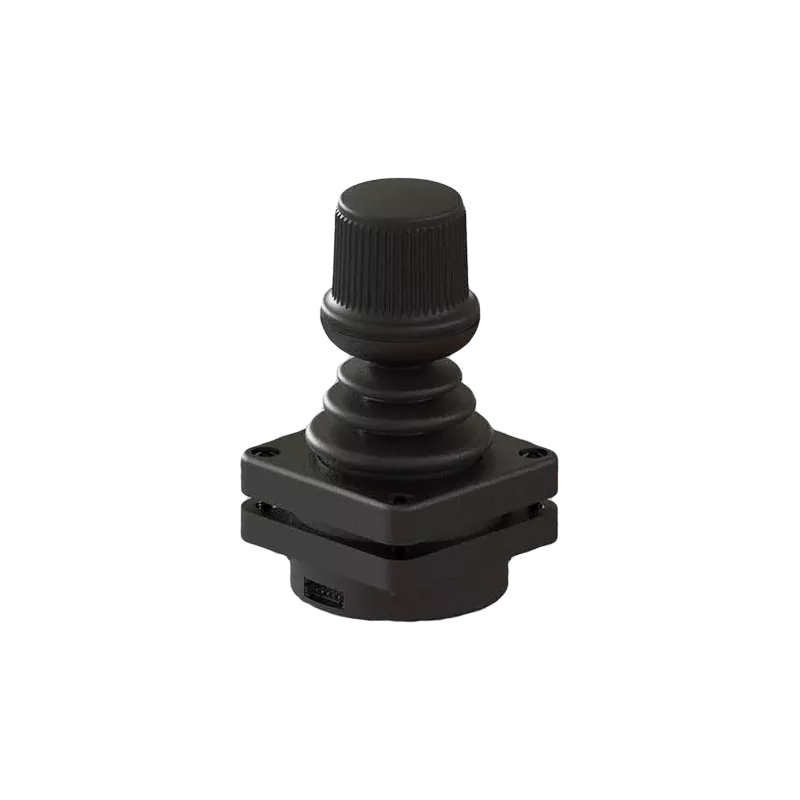

HE3 Multi-Axis Finger Joystick
Dual independent output Multi-Axis Joystick (1-axis, 2-axis or 3-axis) for safety sensitive applications and extreme environments with minimum IP67 grade.
Eigenschaften
- Available in 1-axis, 2-axis or 3-axis configurations
- Robust stainless steel shaft & brass X/Y mechanism
- With contactless hall effect sensor technology
- Pre-programmed proportional analog output/ USB
- Cable included with mating connector & pigtail wires
- Suitable for harsh environments (all configurations are IP67 sealed)
About our HE3 Multi-Axis finger joystick
This is the most reliable finger-operated joystick in our HE series. It is developed for safety-critical applications with dual independent Hall Effect sensors implemented on each axis. All models are minimum IP67 sealed and give the peace of mind necessary to get the job done.
Just like the HE2 series, the mechanism is constructed from a robust stainless steel shaft and brass X/Y mechanism. The electrical analog output options and configurable to your liking and applicable mounting hardware and electrical able are supplied with each unit.
Additional Features
- Delivery within 2 weeks
- Dual independent electrical outputs per axis for safety-critical applications
Applications
- Marine and offshore control
- Mobile hydraulics
- Chest controllers
- Industrial vehicles
- Robot operations
- Crane operations
Benötigen Sie diesen Sensor für Ihr nächstes Projekt?
Fordern Sie jetzt ein Angebot an oder lassen Sie sich kostenfrei von unseren Experten beraten!
Produkt Downloads
Maßgeschneidert nach Ihren Anforderungen
Nicht das richtige Produkt? Wir bieten Ihnen sowohl Standard Sensoren als auch maßgeschneiderte Produkte und komplette Messlösungen. Bitte kontaktieren Sie uns für eine Beratung oder ein unverbindliches Angebot!
KontaktTechnische Spezifikationen
Spezifikationen | Wert |
---|---|
Angle of movement | ±20° (X,Y-axis) / ±45° (Z-axis) |
Centering | Spring return |
Expected cycle life | 5 million |
Ip sealing above panel | IP67 Standard |
Material | Glass/Mineral filled nylon, Stainless steel shaft, Brass gimbal |
Operating temperature | -40°C to 85°C |
Output voltage | Independent dual output: 0V-5V / 0.5V-4.5V / 0.25V-4.75V / 1V-4V |
Resolution | 12 bit |
Sensor type | Hall effect |
Storage temperature | -40°C to 85°C |
Supply voltage | 5VDC ±0.01VDC |
