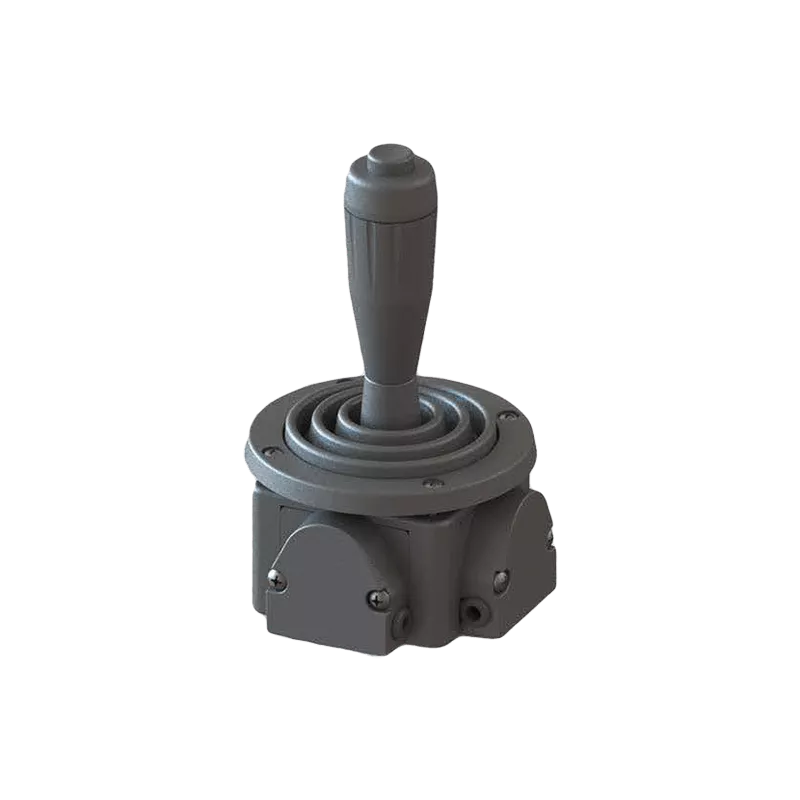

MH Multi-Axis Finger Joystick

Fingertip Joystick. Available in 2-axis or 3-axis configurations. With independent contactless Hall Effect sensors per axis, providing a high reliability and precision


Eigenschaften

  • 16 handle options and 3 mounting options
  • Available in 2-axis or 3-axis configurations
  • Independent contactless hall effect sensor per axis
  • Pre-programmed proportional output
  • Pigtail wire termination
  • Delivery within 2 weeks

About our MR Multi-Axis Finger Joystick

This multi-axis finger-operated joystick comes with independent contactless Hall Effect sensors per axis and provides reliable, multi-axis fingertip control. It is available in two-axis or three-axis configurations and has many handle options to chose from, including a low profile and slim Z-axis handle.

The repeatable accuracy and superior return to centre voltages set this controller apart from it's competition. Further user-specified voltage range for a pre-programmed analog output and pigtail 28AWG wires make the controller suitable to integrate into any applicable system.

Applications

  • Measurement systems
  • Robotic systems
  • CCTV
  • Machine control
  • Conveyor systems
  • Wheelchair control
  • High magnetic field environments

Benötigen Sie diesen Sensor für Ihr nächstes Projekt?

Fordern Sie jetzt ein Angebot an oder lassen Sie sich kostenfrei von unseren Experten beraten!

Kontakt

Produkt Downloads

Maßgeschneidert nach Ihren Anforderungen

Nicht das richtige Produkt? Wir bieten Ihnen sowohl Standard Sensoren als auch maßgeschneiderte Produkte und komplette Messlösungen. Bitte kontaktieren Sie uns für eine Beratung oder ein unverbindliches Angebot!

Kontakt

Technische Spezifikationen

Spezifikationen Wert
Angle of movement ±25° (X,Y-axis) / ±45° (Z-axis)
Centering Spring return
Expected cycle life 5 million
Ip sealing above panel Up to IP54
Material Glass/Mineral filled nylon
Operating temperature -20°C to 60°C
Output voltage 0V-5V / 0.5V-4.5V / 0.25V-4.75V / 1V-4V
Resolution 12 bit
Sensor type Independent hall effect sensor per axis
Storage temperature -40°C to 70°C
Supply voltage 5VDC ±0.01VDC
