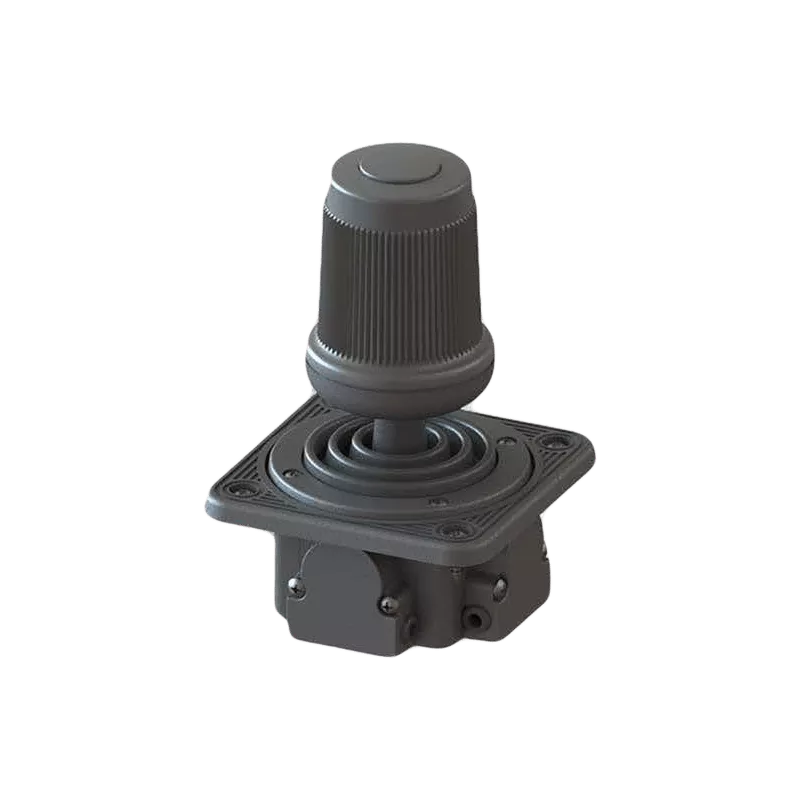

MR Multi-Axis Potentiometer Fingertip Joystick

Compact multi-axis (2-axis or 3-axis) potentiometer fingertip joystick for proportional control, making it ideal for high magnetic field environments.


Eigenschaften

  • 5 handle options and 2 mounting options
  • 5kΩ potentiometers incorporated on each axis
  • Available in 2-axis or 3-axis configurations
  • Pigtail wire termination, pre-soldered to pots
  • Suitable for high magnetic field environments
  • Excellent resistance to EMI due to precision potentiometer sensor technology
  • Delivery within 2 weeks

About our MR Multi-Axis Finger Joystick

This compact and low profile finger-operated potentiometer joystick is available in two-axis or three-axis precision control. This all-purpose finger-operated joystick can be delivered in 2 weeks or less. It has proportional potentiometer technology and 5 handle options and 2 mounting options to choose from.

The pre-programmed proportional output per axis provides excellent resistance to EMI, in a small yet robust package. Combined with the low operating force needed to move the controller and variety of handle and mounting options, this allows for easy integration in a wide array of systems.

It is perfect for applications like measurement systems, robotic systems, CCTV, machine control, conveyor systems, PTZ camera control, wheelchair control or in environments where high magnetic fields are present.

Applications

  • Measurement systems
  • Robotic systems
  • CCTV
  • Machine control
  • Conveyor systems
  • Wheelchair control
  • High magnetic field environments

Benötigen Sie diesen Sensor für Ihr nächstes Projekt?

Fordern Sie jetzt ein Angebot an oder lassen Sie sich kostenfrei von unseren Experten beraten!

Kontakt

Produkt Downloads

Maßgeschneidert nach Ihren Anforderungen

Nicht das richtige Produkt? Wir bieten Ihnen sowohl Standard Sensoren als auch maßgeschneiderte Produkte und komplette Messlösungen. Bitte kontaktieren Sie uns für eine Beratung oder ein unverbindliches Angebot!

Kontakt

Technische Spezifikationen

Spezifikationen Wert
Angle of movement ±25° (X,Y-axis) / ±45° (Z-axis)
Centering Spring return
Expected cycle life See potentiometer options
Ip sealing above panel Up to IP54
Material Glass/Mineral filled nylon
Operating temperature -20°C to 60°C
Resistance 5 kΩ
Resistance element Conductive Plastic
Sensor type Potentiometer
Storage temperature -40°C to 70°C
