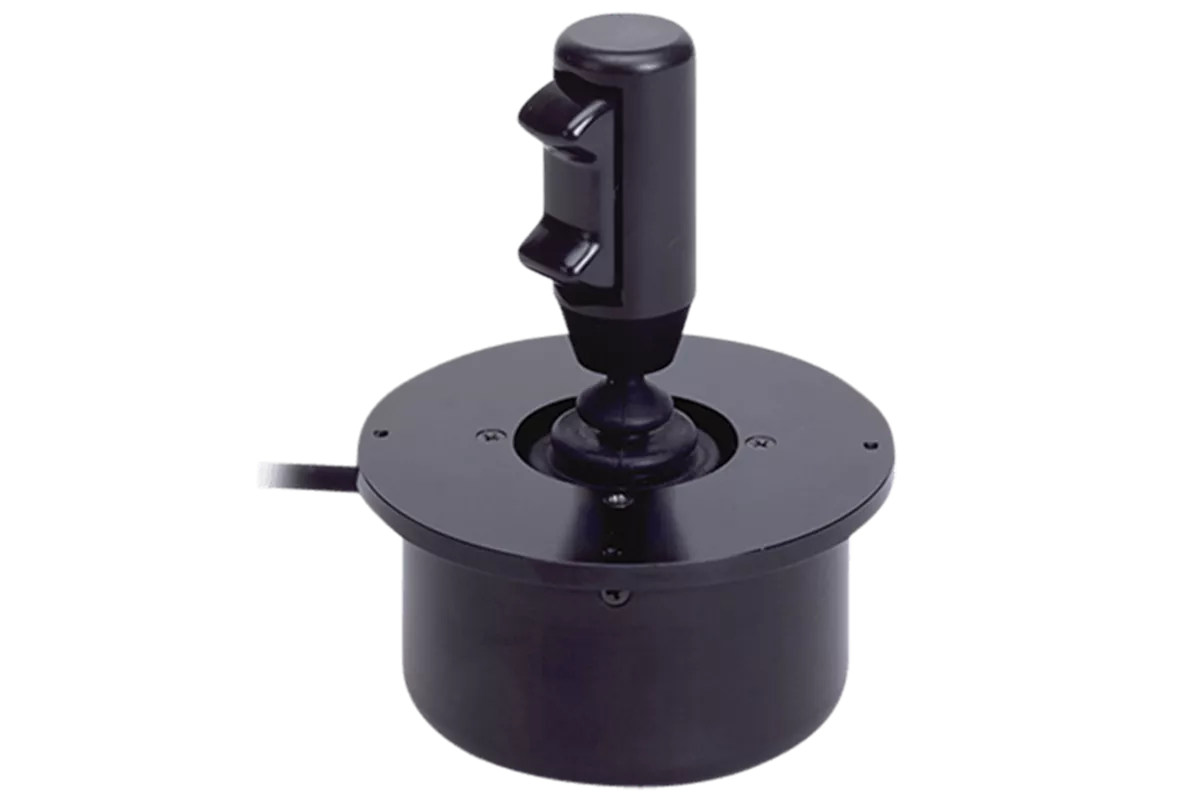

  5. 100JB Multi-Axis Hand Joystick

100JB Multi-Axis Hand Joystick

With a Seesaw type potentiometer as Z axis potentiometer


Eigenschaften

  • 3-dimensional coordinate type (3-Axis)
  • Potentiometer incorporated type
  • With conductive plastic element
  • Protection IP40

About the Large Hand Joystick 100JB

This model has a Seesaw Type Potentiometer as Z-Axis Potentiometer. Only 3-dimensional coordinate type is available. Suitable for various indoor applications.

Applications for 100JB

  • 3-dimensional coordinate measuring apparatuses
  • Image processing devices
  • Industrial vehicles
  • Robot operations

Benötigen Sie diesen Sensor für Ihr nächstes Projekt?

Fordern Sie jetzt ein Angebot an oder lassen Sie sich kostenfrei von unseren Experten beraten!

Kontakt

Produkt Downloads

Maßgeschneidert nach Ihren Anforderungen

Nicht das richtige Produkt? Wir bieten Ihnen sowohl Standard Sensoren als auch maßgeschneiderte Produkte und komplette Messlösungen. Bitte kontaktieren Sie uns für eine Beratung oder ein unverbindliches Angebot!

Kontakt

Technische Spezifikationen

Spezifikationen Wert
3-dimensional coordinate type: Approx. ±15°~±19° operation from center position of the seesaw knob, in addition to the controlling range of 2-dimensional coordinate type
Approx. 2.000.000 operations for Z axis
Contact resistance variation Below 5% C.R.V.
Controlling range of operating lever 2-dimensional coordinate type: Omni-directionally approx. ±20°~±25° operation from center position
Dielectric strength 1 minute at 500V.A.C.
Insulation resistance Over 1.000MΩ at 500VDC
Life expectancy Approx. 5.000.000 operations for X and Y axes
Mass 3-dimensional coordinate type: Approx. 410g
Operating temperature range -20°C~+65°C
Output smoothness Below 0.2% against input voltage
Resolution Essentially infinite
Shock 294m/s²
Vibration 10~55Hz 98m/s²
X, y directions Approx. 0.8~2.3N (80~230gf.) [with 2 springs (with directive feling) as standard version]
Z direction Approx. 24-30mN•m (240~300gf•cm)
