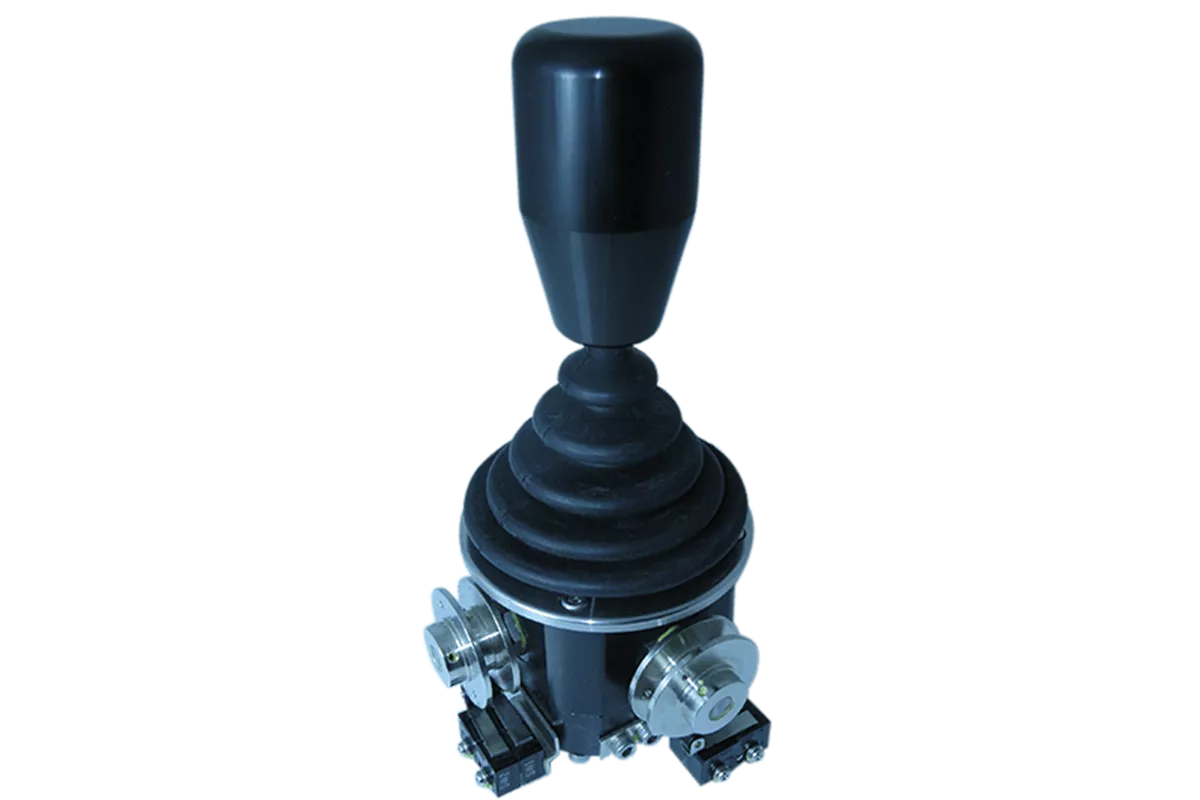

50JA Multi-axis Potentiometer Joystick

2-axis or 3-axis potentiometer joystick, available with different knob types. In case of the 3-axis version the third axis (Z-axis) is controlled by turning the joystick knob.


Eigenschaften

  • Multi-axis (2-axis or 3-axis)
  • Potentiometer outside-mounted type
  • With conductive plastic element
  • Protection IP40/IP54

About the 50JA Multi-Axis Potentiometer Hand Joystick

This Multi-Axis hand operated industrial joystick is one of our most standardized joystick controllers. Various special specifications are easily available.

Applications for 50JA

  • 3-dimensional coordinate measuring apparatuses
  • CAD/CAM/CAE display devices
  • Robot operations

Benötigen Sie diesen Sensor für Ihr nächstes Projekt?

Fordern Sie jetzt ein Angebot an oder lassen Sie sich kostenfrei von unseren Experten beraten!

Kontakt

Produkt Downloads

Maßgeschneidert nach Ihren Anforderungen

Nicht das richtige Produkt? Wir bieten Ihnen sowohl Standard Sensoren als auch maßgeschneiderte Produkte und komplette Messlösungen. Bitte kontaktieren Sie uns für eine Beratung oder ein unverbindliches Angebot!

Kontakt

Technische Spezifikationen

Spezifikationen Wert
3-dimensional coordinate type: Approx. 230g
3-dimensional coordinate type: Approx. 320° rotation by knob-operation in addition to the controlling range of 2-dimensional coordinate operation.
High torque type: Approx. 2~6N (200~600gf.)
Z direction: Approx. 20~85mN~M (200~850gf cm.)
Contact resistance variation Below 5% C.R.V.
Controlling range of operating lever 2-dimensional coordinate type: Omni-directionally approx. ±30°~±35° operation from center position
Dielectric strength 1 minute at 500VAC
Insulation resistance Over 1000MΩ at 500VDC
Life expectancy Approx. 5.000.000 operations
Mass 2-dimensional coordinate type: Approx. 280g
Operating temperature range -20°C~+65°C
Output smoothness Below 0.2% against input voltage
Resolution Essentially infinite
Shock 294m/s²
Vibration 10~55Hz 98m/s²
With spring return device: subject to directivity) X, Y directions: Approx. 0.8~1.5N (80~150gf)
Without spring return device Standard: Approx. 0.5~0.8N (50~80gf.)
