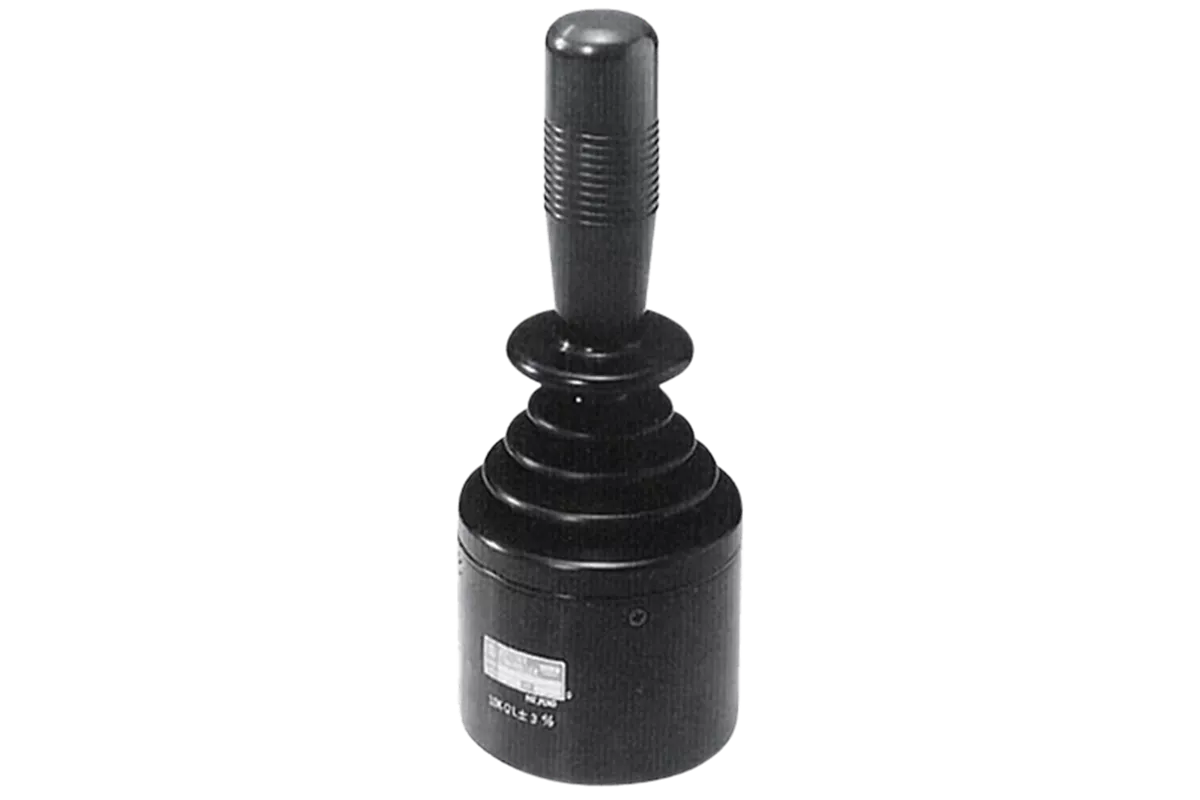

90JB Multi-Axis Hand Joystick

Multi-Axis (2-axis or 3-axis) hand operated joystick with potentiometers incorporated inside housing. Suitable for robot operations, crane operations, industrial heavy vehicles and precision machine tools.


Eigenschaften

  • 2 or 3 dimensions (2-axis or 3-axis)
  • Potentiometer incorporated
  • With conductive plastic element
  • Protection IP65

About the Large Multi-Axis Hand Joystick 90JB

This multi-axis hand operated joystick has almost same specifications as the 90JA hand joystick, but potentiometers are incorporated inside housing. Suitable for space-saving inside the cabinet.

Applications for 90JB

  • Robot operations
  • Crane operations
  • Industrial vehicles
  • Precision machine tools

Benötigen Sie diesen Sensor für Ihr nächstes Projekt?

Fordern Sie jetzt ein Angebot an oder lassen Sie sich kostenfrei von unseren Experten beraten!

Kontakt

Produkt Downloads

Maßgeschneidert nach Ihren Anforderungen

Nicht das richtige Produkt? Wir bieten Ihnen sowohl Standard Sensoren als auch maßgeschneiderte Produkte und komplette Messlösungen. Bitte kontaktieren Sie uns für eine Beratung oder ein unverbindliches Angebot!

Kontakt

Technische Spezifikationen

Spezifikationen Wert
3-dimensional coordinate type: Approx. ±45°~±50° omni-direction from center position of knob in addition to the operating range of 2-dimensional coordinate type
3-dimensional coordinate type: Approx. 750g
X, Y directions: Approx. 2~12N(200~1,200gf)
Z direction: Approx. 20~85NM•m(200~850gf•cm)
Contact resistance variation Below 5% C.R.V.
Controlling range of operating lever 2-dimensional coordinate type: Approx. ±22°~±26° omni-direction from center position
Dielectric strength 1 minute at 500 V.A.C.
Insulation resistance Over 1000MΩ at 500VDC
Life expectancy Approx. 5.000.000 operations
Mass 2-dimensional coordinate type: Approx. 650g
Operating force Standard spring return device: Automatically return to center
Operating temperature range -20°C~+65°C
Output smoothness Below 0.2% against input voltage
Resolution Essentially infinite
Shock 294m/s²
Vibration 10~55Hz 98m/s²
