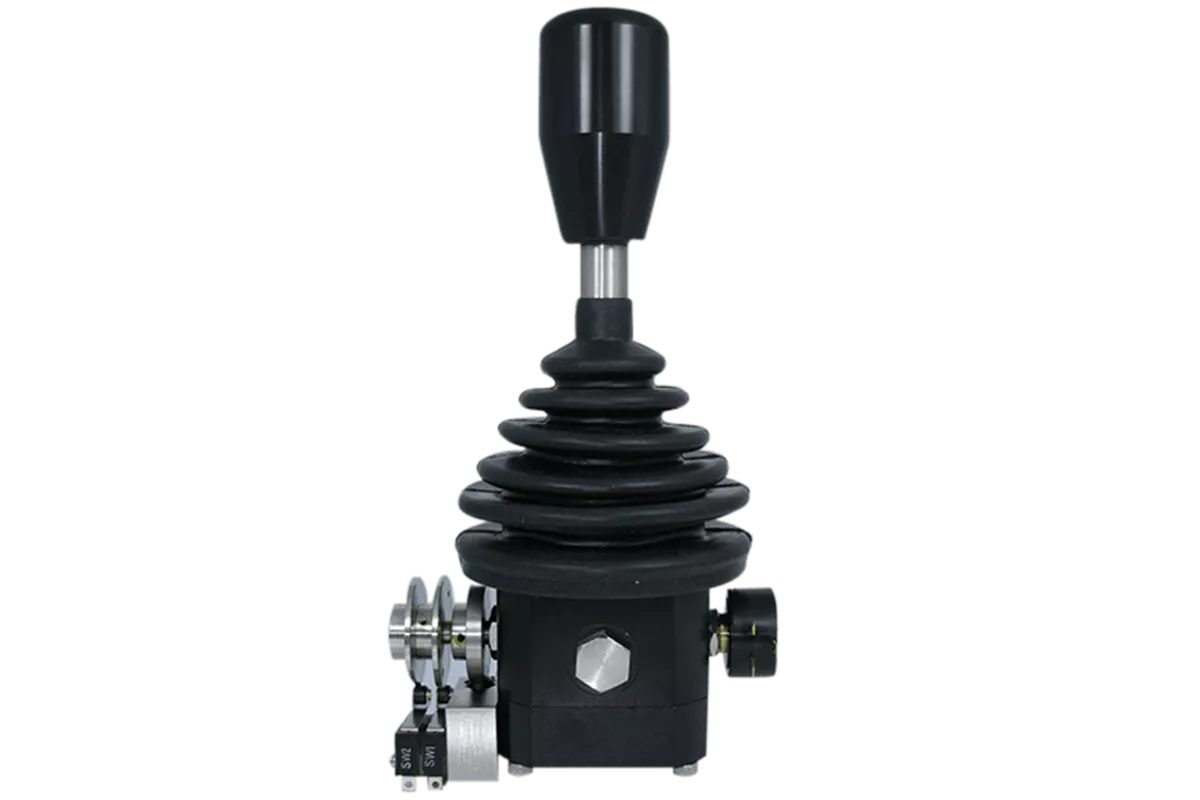

H50JA Multi-Axis Hand Joystick

Multi-Axis (2-axis or 3-axis) Joystick. Potentiometer with a hall effect IC type resistive element (potentiometer outside mounted type).


Eigenschaften

  • Multi-axis (2-axis or 3-axis)
  • Potentiometer outside-mounted type
  • With a hall effect IC
  • Protection IP40/IP54

About the H50JA Multi-Axis Hand Joystick

H50JA type joystick controller incorporating a hall effect IC type potentiometer, which suits especially for the application with strong vibration.

Use this joystick controller for applications with strong vibrations: tooling machines, robot operation and conveyor systems.

Applications for H50JA

  • Various kinds of tooling machines
  • Robot operation
  • Conveyer systems

Benötigen Sie diesen Sensor für Ihr nächstes Projekt?

Fordern Sie jetzt ein Angebot an oder lassen Sie sich kostenfrei von unseren Experten beraten!

Kontakt

Produkt Downloads

Maßgeschneidert nach Ihren Anforderungen

Nicht das richtige Produkt? Wir bieten Ihnen sowohl Standard Sensoren als auch maßgeschneiderte Produkte und komplette Messlösungen. Bitte kontaktieren Sie uns für eine Beratung oder ein unverbindliches Angebot!

Kontakt

Technische Spezifikationen

Spezifikationen Wert
Effective output: Approx. 0.5V~4.5V
Electrical rotating angle: Approx. ±18°
Independent linearity tolerance ±3%
Load resistance: Over 10KΩ
Controlling range of operating lever Omni-directionally approx. ±18°~±22° operation from center position
Dielectric strength 1 minute at 250V.A.C.
Ems durability 100V/m(80Mhz~1GHz 1KHz sine-wave 80%AM modulation)
Esd durability ±8KV contact ±15KV aerial discharge (Based on IEC61000-4-2)
Hall effect ic type potentiometer (shsm18e) mounted Applied voltage: 5V±10%D.C.
Insulation resistance Over 100MΩ at 250VDC
Mass 2-dimensional coordinate type: Approx. 280g
Mechanical life expectancy Approx. 10.000.000 operations
Operating force X&Y richtingen ±0.8N~1.5N (80~150gf)
Operating temperature range -20°C~+65°C
Resolution Infinitesemal
Shock 294m/s²
Vibration 10~55Hz 98m/s²
