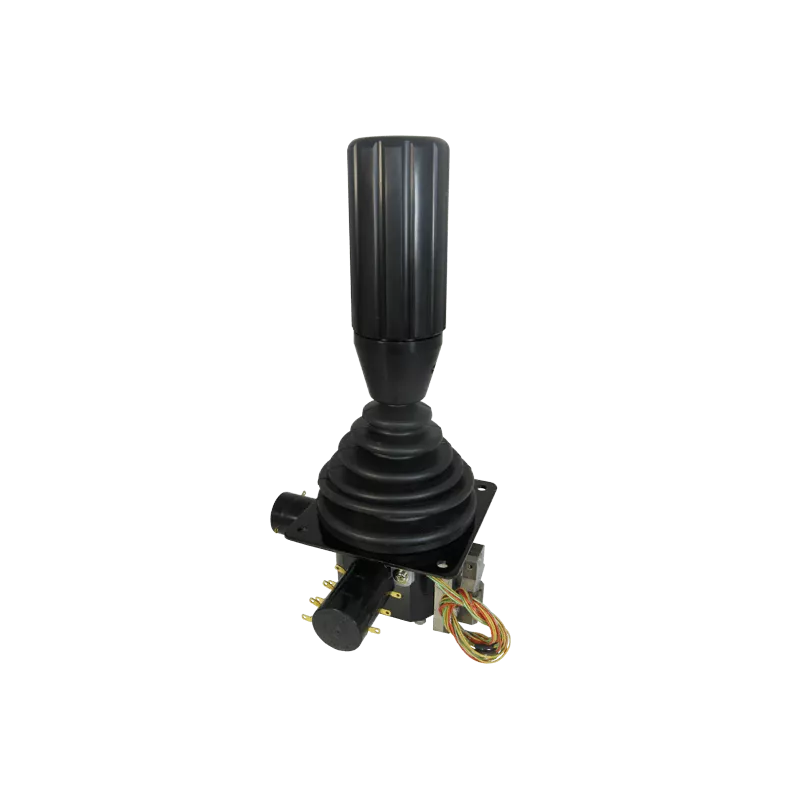

S50JCK-ZT-90GP Marine Joystick
Specially designed for steering of hoovercrafts
Eigenschaften
- Specially designed for steering of hoovercrafts
- Operating temperature range: -20°C +65°C
- Life expectancy: 5.000.000 operations
- Sensors: Potentiometer, hall effect, encoder
- Special features such as switch(es), pushbuttons(s), rocker(s)/seesaw, deadman function etc. available on request
About the S50JCK-ZT-90GP Marine Joystick
Hoovercrafts also known as an air-cushion vehicle or ACV is a craft capable of travelling over land and water. Hoovercrafts are hybrid vessels operated by a pilot as an aircraft rather than a captain as a marine vessel. For controlling the propulsion systems special joysticks are required to steer the vessel into the right direction, and make 'flying' over water a safe and reliable way of transport.
Benötigen Sie diesen Sensor für Ihr nächstes Projekt?
Fordern Sie jetzt ein Angebot an oder lassen Sie sich kostenfrei von unseren Experten beraten!
Maßgeschneidert nach Ihren Anforderungen
Nicht das richtige Produkt? Wir bieten Ihnen sowohl Standard Sensoren als auch maßgeschneiderte Produkte und komplette Messlösungen. Bitte kontaktieren Sie uns für eine Beratung oder ein unverbindliches Angebot!
KontaktTechnische Spezifikationen
Spezifikationen | Wert |
---|---|
Controlling range of operating lever | 2-dimensional coordinate type: Omni-directionally approx. ±30°~±35° operation from center position |
Life expectancy | Approx. 5.000.000 operations |
Mass | Approx. 350g |
Operating force | Standard spring return device: Automatically return to center (omni-directional type) Approx. 3~15N (300~1,500gf.) |
Operating temperature range | -20°C~+65°C |
Shock | 294m/s² |
Vibration | 10~55Hz 98m/s² |
