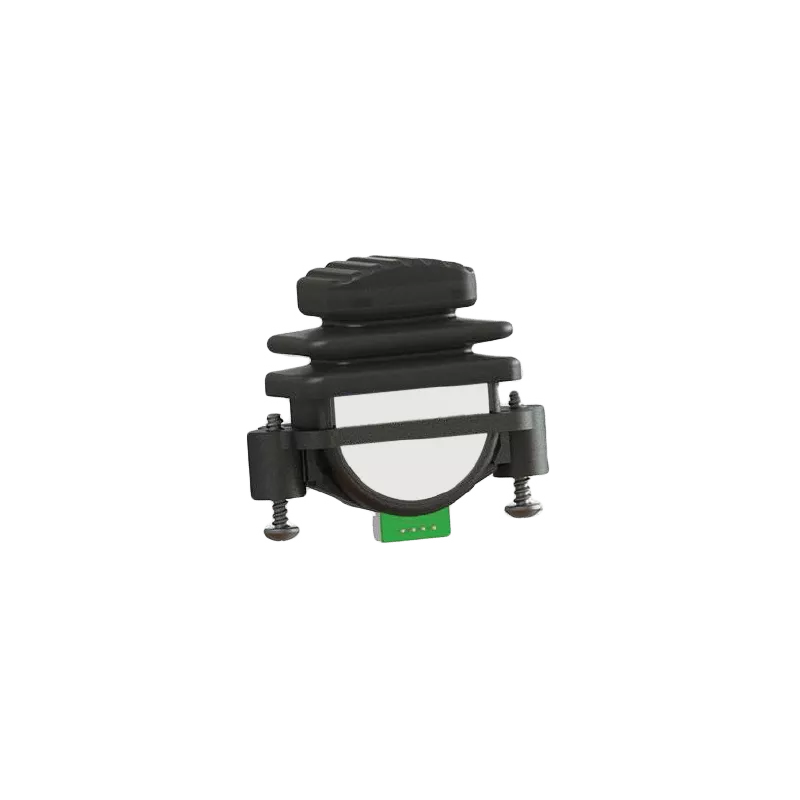

MSA Single-Axis Mini Thumb Joystick
Miniature 1-Axis Hall Effect Thumb Controller with dual independent output and slim size, designed for harsh environments.
Eigenschaften
- Standard delivery time 2-3 weeks
- Proportional contactless hall effect technology
- Single axis thumb controller with elastomer actuator
- Standard IP67 grade protection above panel
About our MSA Mini Thumb Joystick
This single-axis mini thumb controller uses contactless hall effect sensor technology with a proportional output. The optional dual independent output and standard IP67 grade protection make it ideal for harsh and safety-critical environments.
The 1-axis joystick comes with an elastomer actuator that provides the user with a fantastic machine interaction and its very slim size make it ideal to fit multiple MSA joysticks alongside each other on control panels or large hand grip joysticks. Each unit is supplied with a below panel mounting clip and snap-in electrical cable.
Applications
- Industrial remote controllers
- Large hand grip joysticks
- Marine winch control
- (Outdoor) Control panels
Benötigen Sie diesen Sensor für Ihr nächstes Projekt?
Fordern Sie jetzt ein Angebot an oder lassen Sie sich kostenfrei von unseren Experten beraten!
Produkt Downloads
Maßgeschneidert nach Ihren Anforderungen
Nicht das richtige Produkt? Wir bieten Ihnen sowohl Standard Sensoren als auch maßgeschneiderte Produkte und komplette Messlösungen. Bitte kontaktieren Sie uns für eine Beratung oder ein unverbindliches Angebot!
KontaktTechnische Spezifikationen
Spezifikationen | Wert |
---|---|
Angle of movement | ±25° |
Centering | Spring return |
Expected cycle life | 3 million |
Ip sealing above panel | IP67 |
Material | Glass/Mineral filled nylon with silicone boot/actuator |
Operating temperature | -40°C to 85°C |
Resolution | 12 bit |
Return to center voltage | ±50mV |
Sensor type | Hall effect |
Storage temperature | -40°C to 85°C |
Supply voltage | 5VDC ±0.01VDC |
