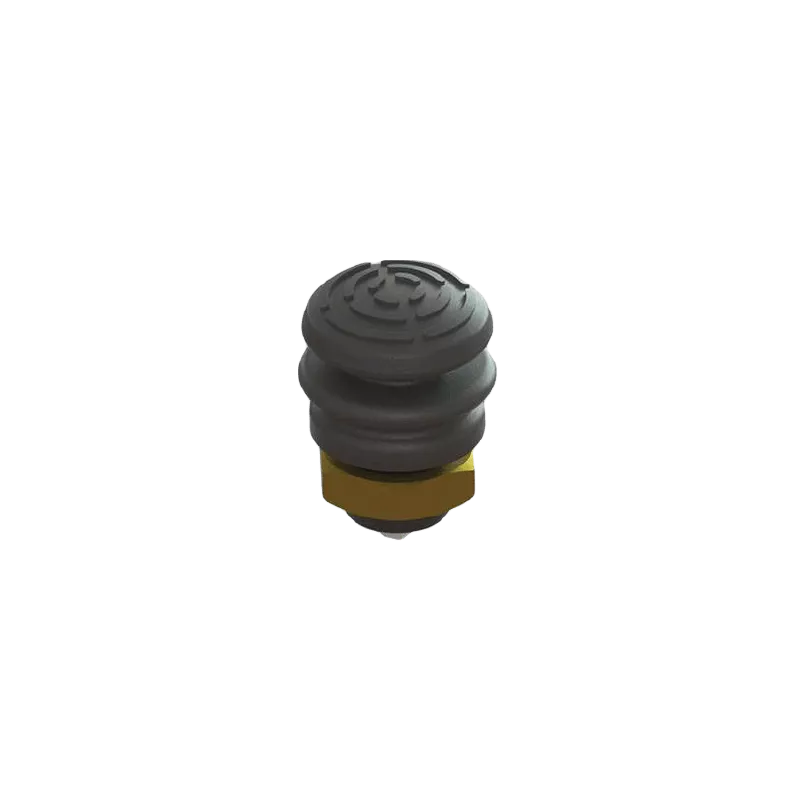

TS2 Dual-Axis Mini Thumb Joystick
World's smallest industrial -2axis Hall Effect joystick with IP67 grade for applications where space is limited.
Eigenschaften
- Smallest joystick
- 2 axis thumb controller
- Contactless hall effect technology
- Standard IP67 above panel
- Four actuator options
About our TS2 mini joystick
The TS2 is the smallest 2-axis industrial joystick in the world and its operation principle is based on hall effect technology. Due to its very compact size and threaded mounting body, it can be easily mounted in small remote controllers, armrest control panels, and large cobra joysticks. The TS2 joystick comes with an elastomer actuator and standard IP67 above panel protection. Based on many years of experience, this joystick packs fantastic quality in a very small package.
Applications
- Large hand grip joysticks
- Industrial remote controllers
- Armrest control panels
Benötigen Sie diesen Sensor für Ihr nächstes Projekt?
Fordern Sie jetzt ein Angebot an oder lassen Sie sich kostenfrei von unseren Experten beraten!
Produkt Downloads
Maßgeschneidert nach Ihren Anforderungen
Nicht das richtige Produkt? Wir bieten Ihnen sowohl Standard Sensoren als auch maßgeschneiderte Produkte und komplette Messlösungen. Bitte kontaktieren Sie uns für eine Beratung oder ein unverbindliches Angebot!
KontaktTechnische Spezifikationen
Spezifikationen | Wert |
---|---|
Angle of movement | ±15° |
Centering | Spring return |
Expected cycle life | 2.5 million |
Ip sealing above panel | IP67 |
Material | Glass/Mineral filled nylon with silicone boot and actuator |
Operating temperature | -40°C to 85°C |
Resolution | 12 bit |
Return to center voltage | ±100mV |
Sensor type | Hall effect |
Storage temperature | -40°C to 85°C |
Supply voltage | 5VDC ±0.01VDC |
