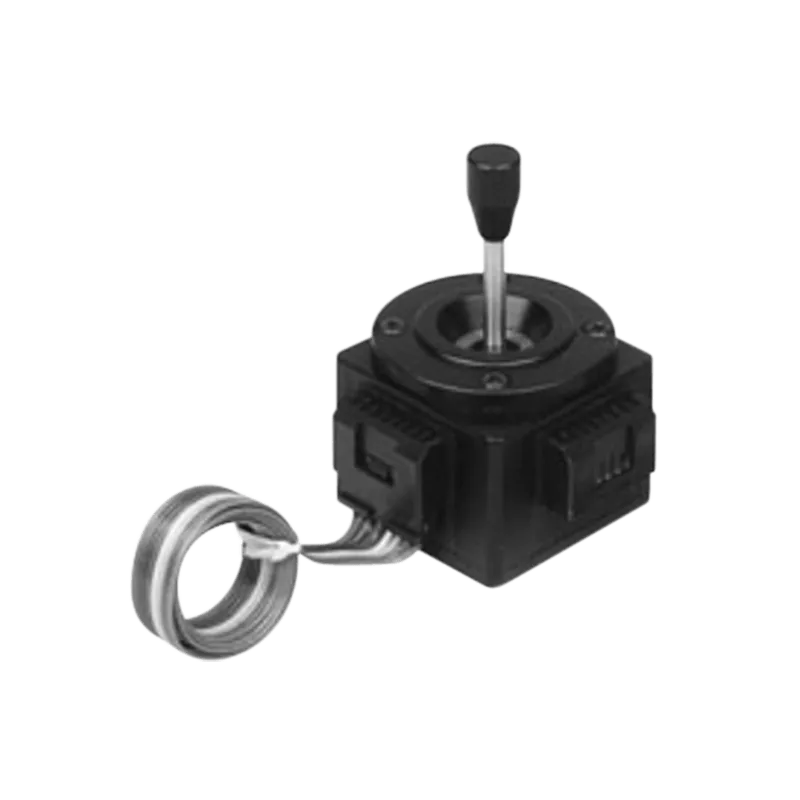

40JE Dual-Axis Finger Joystick

2-Axis fingertip joystick. Incorporates code switches of digital output, instead of potentiometers


Key features

  • Dual axis (2-axis) finger joystick
  • Digital switch incorporated type
  • Protection IP40/IP54

About the 40JE 2-Axis Finger Joystick

Almost same outer dimensions as low-cost type 40JB Finger Joystick and incorporates code switches of digital output, instead of potentiometers. Spring return device is fitted as standard version.

Applications for 40JE

  • Medical instruments
  • Industrial vehicles
  • Robot operations

Do you need this product for your next project?

Request a quotation today or leave your details to receive more information from one of our experts.

Talk to an expert

Product downloads

Have it your way

Not exactly what you’re looking for? We offer standard products, but can also help you with a tailor-made or fully customized solution. Please contact us for advice or budgetary pricing.

Talk to an expert

Technical Specifications

Specification Value
Contact resistance Below 300mΩ
Controlling range of operating lever 2-dimensional coordinate type: 360° and square-directionally approx. ±20°~25° operation from center position
Dielectric strength 1 minute at 500V.A.C.
Insulation resistance Over 100MΩ at 250VDC
Life expectancy Approx. 5.000.000 operations
Mass Approx. 180g
Operating force 1.6~3N (160~300gf.)
Operating temperature range -20°C~+65°C
Shock 294m/s²
Switches used Rating 12V.D.C. below 1mA
Vibration 10~55Hz 98m/s²
