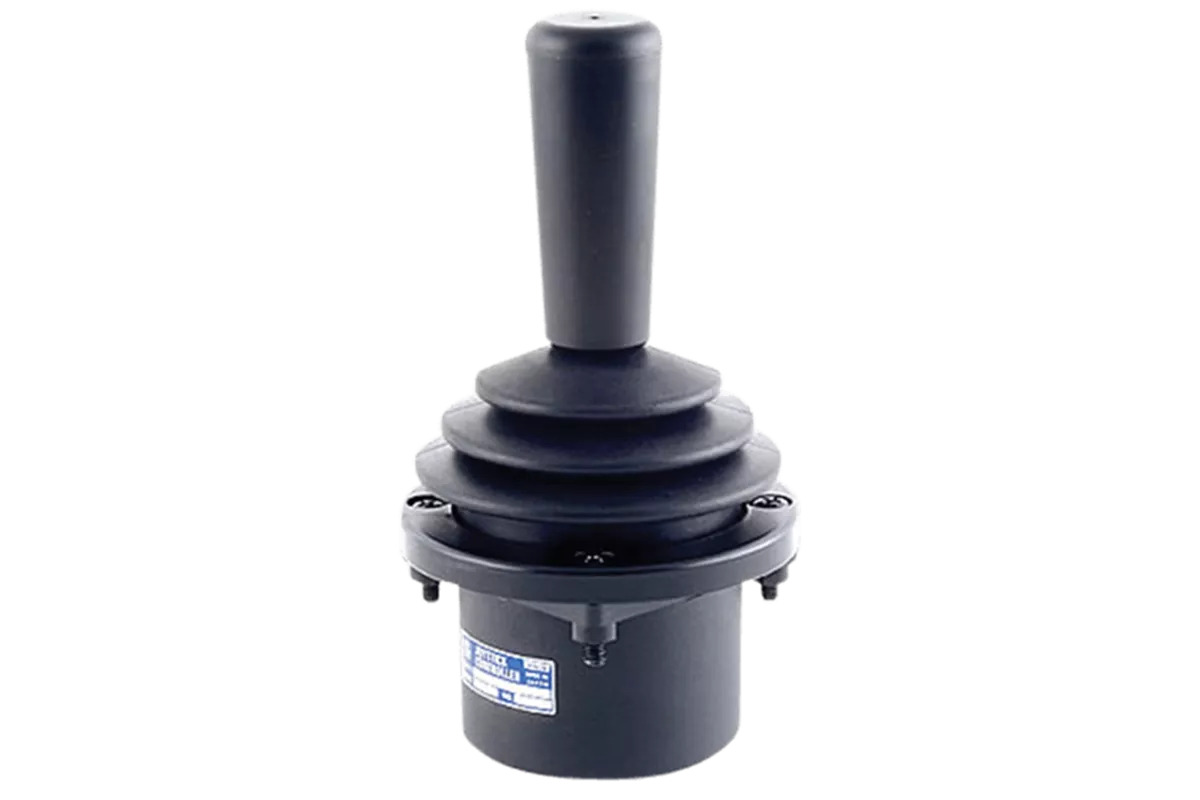

H60JH Dual-Axis Hand Joystick

Low-cost 2-axis joystick controller with hall effect IC incorporated.


Key features

  • Potentiometer incorporated type
  • Two-axis (2-dimensional coordinate type joystick)
  • With a Hall Effect IC
  • Protection IP65

About the H60JH 2-Axis Hand Joystick

Low-cost version of 2-dimensional coordinate type (2-axis) joystick controller with hall effect IC incorporated, which features the robust structure, and high load strength to the knob.

Applications for H60JH

  • Robot operations
  • Crane operations
  • Industrial vehicles
  • Civil engineering and construction machinery

Do you need this product for your next project?

Request a quotation today or leave your details to receive more information from one of our experts.

Talk to an expert

Product downloads

Have it your way

Not exactly what you’re looking for? We offer standard products, but can also help you with a tailor-made or fully customized solution. Please contact us for advice or budgetary pricing.

Talk to an expert

Technical Specifications

Specification Value
Effective output: 0.5V~4.5V
Electrical rotating angle: Approx. ±20°
Independent linearity tolerance: ±3%
Load resistance: Over 10KΩ
X and Y directions: Approx. 3N~4.5N (300~450gf)
Controlling range of operating lever X and Y directions: Approx. ±20° from center position
Dielectric strength 1 minute at 500 V.A.C.
Ems durability 100V/m(80Mhz~1GHz 1KHz sine-wave 80%AM modulation)
Esd durability ±8KV contact ±15KV aerial discharge (Based on IEC61000-4-2)
Hall effect ic type resistive element incorporated Applied voltage: D.C. 5V±10%
Insulation resistance Over 1000MΩ at 500VDC
Life expectancy Approx. 5.000.000 operations
Mass Approx. 300g
Operating force Spring return device with directive feeling: Automatically return to center
Operating temperature range -20°C~+65°C
Shock 294m/s²
Vibration 10~55Hz 98m/s²
