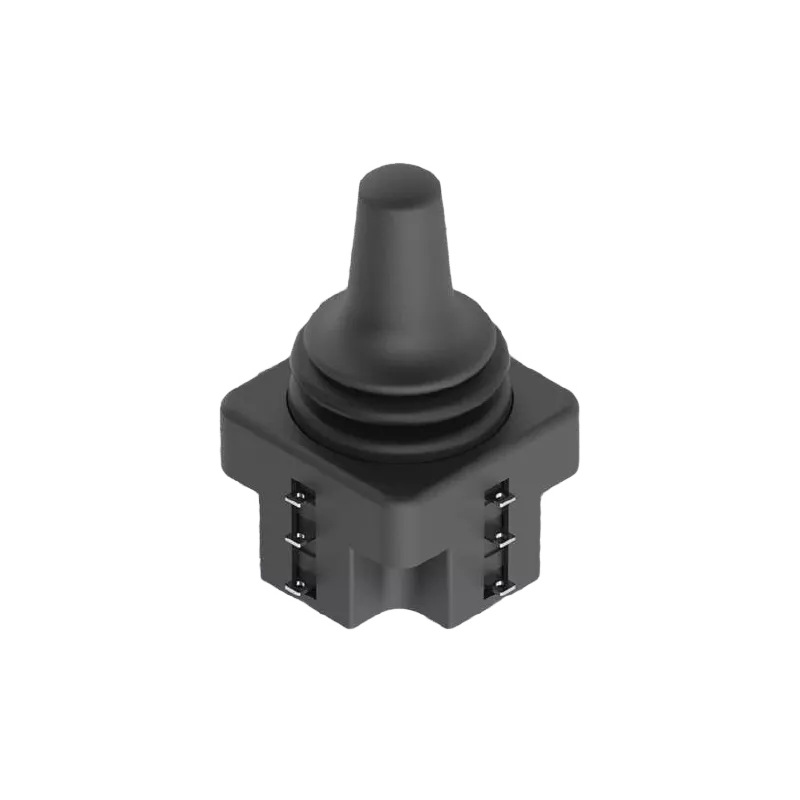

SS2 Dual Axis Mini Switch Joystick
Compact miniature 2-Axis limit switch joystick.
Key features
- Compact design
- 2-Axis switch joystick
- 2, 4, or 8 position switch
- Standard IP67 above panel
About our SS2 2-Axis Mini Joystick
The SS2 is a compact, single pole limit switch joystick for less demanding industrial applications. It can be supplied with a 2, 4, or 8 switching positions and it has standard IP67 seal above panel. Its compact size makes the SS2 joystick ideal for applications where space is limited.
Applications
- Light industrial equipment
Do you need this product for your next project?
Request a quotation today or leave your details to receive more information from one of our experts.
Product downloads
Have it your way
Not exactly what you’re looking for? We offer standard products, but can also help you with a tailor-made or fully customized solution. Please contact us for advice or budgetary pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| Angle of movement | ±12° |
| Centering | Spring return |
| Expected cycle life | 1 million |
| Ip sealing above panel | IP67 |
| Maximum voltage | 250VAC |
| Operating temperature | -20°C to 85°C |
| Sensor type | Snap action switch |
| Storage temperature | -40°C to 85°C |
