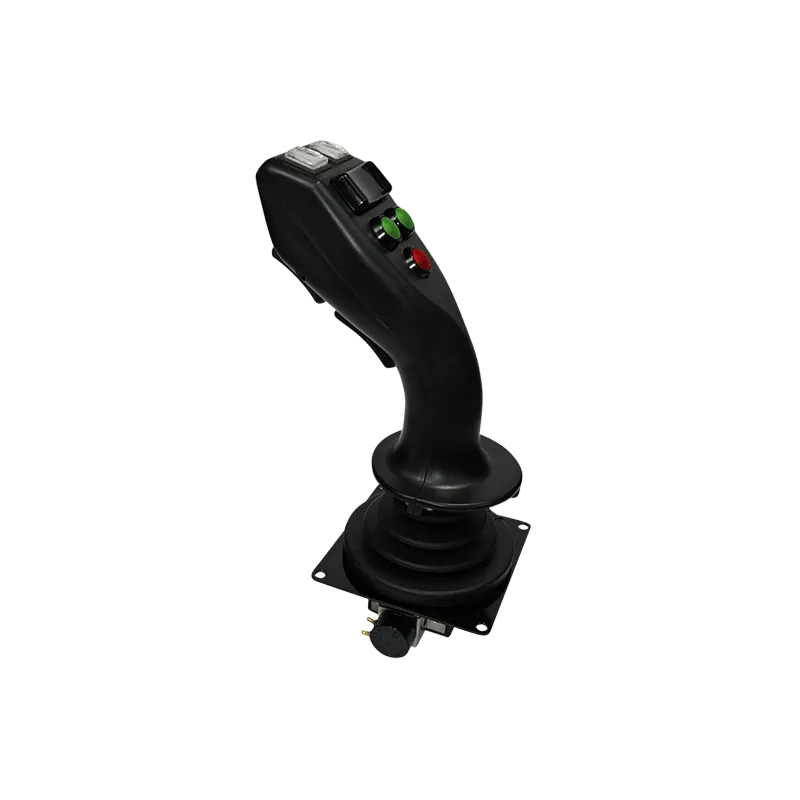

C90JB Multi-operational Cobra Joystick
Large hand 90JB type joystick controller mounted with cobra shaped knob with exclusively used special resistive element
Key features
- Potentiometer outside-mounted
- Protection IP40
- For multi-functional control & with cobra head shaped knob
About the Multi-operational Cobra Joystick C90JB
90JB types joystick controller mounted with cobra shaped knob, which suits for multi-directional operation such as robot operations. It is possible to operate complex functions with push button switches and seesaw motion potentiometer incorporated in the knob. The C90JB has a special resistance element that is exclusively used for the C90JB series.
Applications for C90JB
- Medical instruments
- Industrial vehicles
- Robot operations
Do you need this product for your next project?
Request a quotation today or leave your details to receive more information from one of our experts.
Product downloads
Have it your way
Not exactly what you’re looking for? We offer standard products, but can also help you with a tailor-made or fully customized solution. Please contact us for advice or budgetary pricing.
Talk to an expertTechnical Specifications
| Specification | Value |
|---|---|
| C90ja type | SFCP22E outside mounted |
| C90jb | Special resistance element is exclusively used for C90JB series |
| Center return accuracy | 50% ±1.5% |
| Center return accuracy | 50% ±3% |
| Dielectric strength | 1 minute at 1.000VAC |
| Electrical rotating angle | 30° ±5° |
| Electrical rotating angle | 44° ±5° |
| Independent linearity | ±3% |
| Independent linearity | ±3% |
| Insulation resistance | Over 1.000MΩ at 500VDC |
| Life expectancy | Approx. 2.000.000 operations |
| Life expectancy | Approx. 5.000.000 operations |
| Life expectancy | Approx. 500.000 operations |
| Model no. | RMP30AF (Rocker switch unit) |
| Operating characteristics | Momentary type (ON when pushed) |
| Power rating | 0.1W |
| Power rating | 0.2W |
| Rating | 50VDC, 0.1A |
| Total resistance value | 10kΩ ±15% |
| Total resistance value | 10kΩ ±15% |
