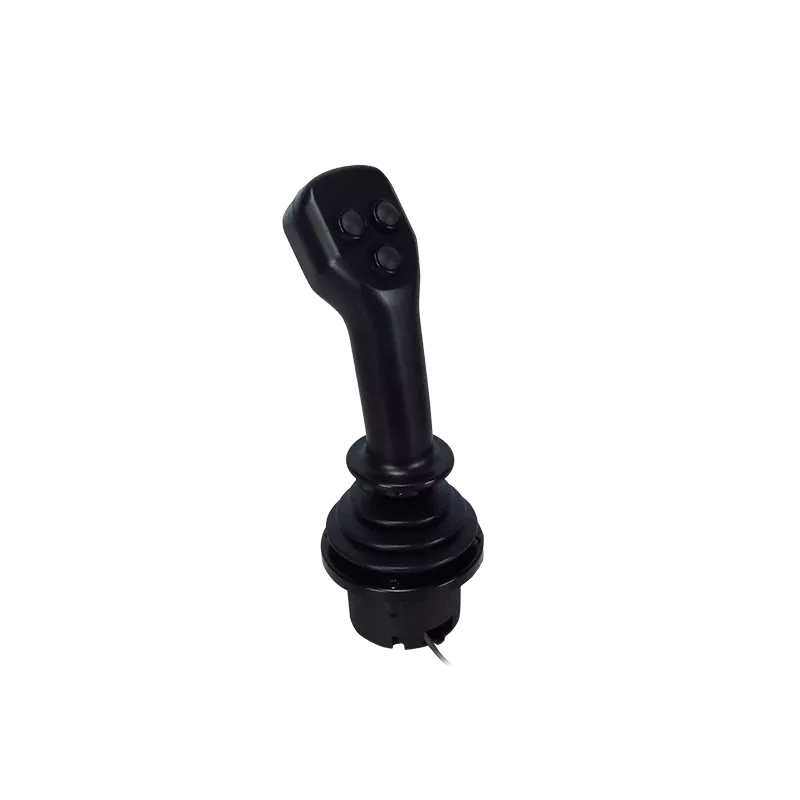

HMC60JH Multi-operational Cobra Joystick

Hand size joystick controller with the mini-cobra shaped knob


Key features

  • Multi-axis
  • Potentiometer incorporated type
  • Protection IP40
  • For multi-functional control with compact sized cobra shaped knob

About the Multi-operational Cobra Joystick HMC60JH

Joystick controller with the mini-cobra shaped knob, which is the down sized version of our cobra shaped knob. The dead-man switch is available on the knob for safety design.

Applications for HCM60JH

  • Robot operations
  • Crane operations
  • Industrial vehicles
  • Civil engineering and construction machinery

Do you need this product for your next project?

Request a quotation today or leave your details to receive more information from one of our experts.

Talk to an expert

Have it your way

Not exactly what you’re looking for? We offer standard products, but can also help you with a tailor-made or fully customized solution. Please contact us for advice or budgetary pricing.

Talk to an expert

Technical Specifications

Specification Value
Dual output type: Approx. 30g
Applied voltage D.C. 5V±10%
Dielectric strength 1 minute at A.C. 500V
Dielectric strength 1 minute at AC 1.000V
Dielectric strength 1 minute at AC 500V
Effective output 0.5V~4.5V
Electrical rotating angle Approx. ±15°(approx. 30°)
Ems durability 100V/m (80Mhz~1GHz 1kHz sine-wave 80%AM modulation)
Esd durability ±8kV contact ±15kV aerial discharge (Based on IEC61000-4-2)
Independent linearity tolerance ±3%FS
Insulation resistance Over 1.000MΩ at DC 500V
Insulation resistance Over 1000MΩ at 500VDC
Insulation resistance Over 100MΩ at 500VDC
Load resistance Over 10kΩ
Mass Single output type: Approx. 25g
Mechanical life Approx. 5.000.000 operations
Mechanical life expectancy Max 500.000 operations
Mechanical life expectancy Max. 300.000 operations
Models Single output, parallel output, cross output
Operating characteristics Momentary type (SW-ON when pushed)
Operating characteristics Momentary type (SW-ON when pushed)
Operating temperature range -20°C~+60°C
Rating 100mA, 12VDC
Rating 100mA, 50VDC
Shock 294m/s²
Vibration 10~55Hz 98m/s²
