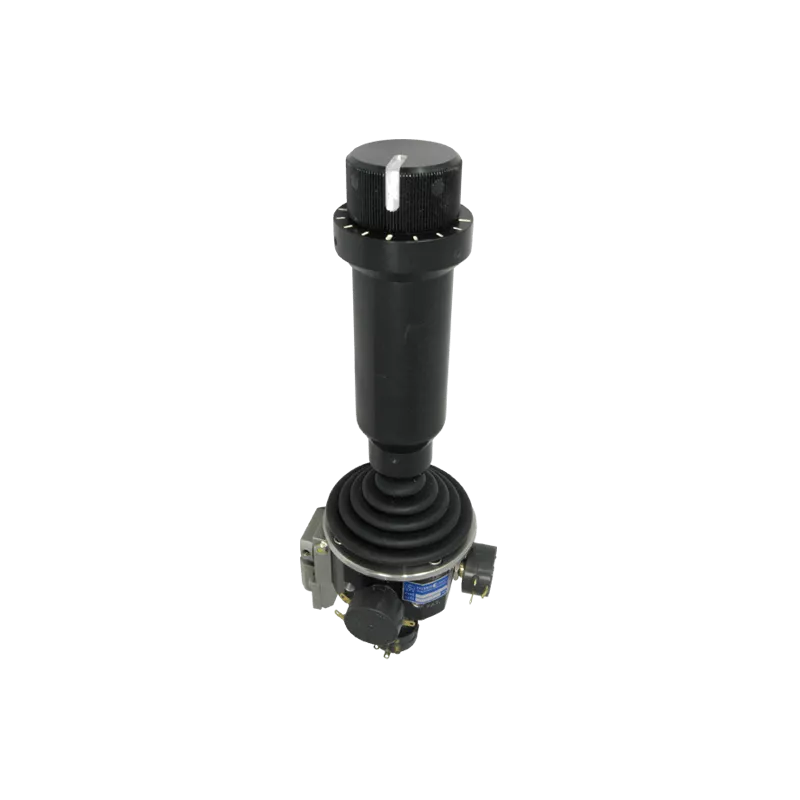

S50JAK-ZZ-30G Maritieme Joystick
Speciaal ontworpen voor dynamische positionering
Belangrijkste kenmerken
- Specifically designed for dynamic positioning
- Applications: Marine, offshore
- Operating temperature range: -20°C +65°C
- Life expectancy: 5.000.000 operations
- Sensors: Potentiometer, hall effect, encoder
- Special features such as switch(es), pushbutton(s), rocker(s)/seesaw, deadman function etc. available on request
About the S50JAK-ZZ-30G Marine Joystick
Today's vessels require high-end computer controlled systems to automatically maintain its position by using the vessels propellers and thrusters. Our joysticks are specifically designed to fulfill the dynamic positioning functions in such applications.
Heeft u dit product nodig voor uw project?
Vraag uw offerte aan, of laat uw gegevens achter voor meer informatie van één van onze experts.
Volledig zoals u wilt
Niet precies wat u zoekt? Wij leveren standaard producten, maar kunnen u ook goed helpen met aangepaste producten, of een volledige tailor-made oplossing. Neem s.v.p. contact met ons op voor een advies op maat en een eventuele offerte.
Praat met een expertTechnische specificaties
Specificaties | Waarde |
---|---|
3-dimensional coordinate type: Approx. 230g | |
3-dimensional coordinate type: Approx. 320° rotation by knob-operation in addition to the controlling range of 2-dimensional coordinate operation | |
High torque type: Approx. 2~6N (200~600gf.) | |
Standard: Approx. 0.5~0.8N (50~80gf.) | |
With spring return device | |
X, Y directions: Approx. 0.8~1.5N (80~150gf) | |
Z direction: Approx. 20~85mN~m (200~850gf • cm.) | |
Controlling range of operating lever | 2-dimensional coordinate type: Omni-directionally approx. ±30° ~ ±35°, operation from center position |
Life expectancy | Approx. 5.000.000 operations |
Mass | 2-dimensional coordinate type: Approx. 280g |
Operating force | Without spring return device |
Operating temperature | -20°C ~+65°C |
Shock | 294m/s² |
